US Alloy Type Swivel Hoist Hook
XN132
• Complete with lock nut fitted latch
• Safety Factor: 5:1
Specifications:

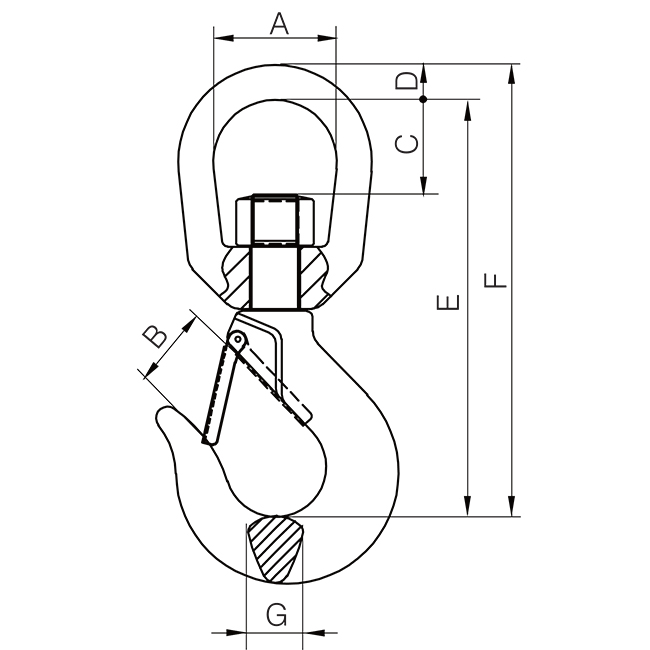

| Part Code | Weight (kg each) | WLL (T) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XN132-01 | 0.3 | 0.75 | 31.5 | 17 | 22.5 | 9 | 110 | 137 | 15 |
| XN132-02 | 0.34 | 1 | 32 | 17 | 22.5 | 9 | 108.3 | 137 | 16 |
| XN132-03 | 0.57 | 1.5 | 37.5 | 22.5 | 29.5 | 12 | 133.5 | 163.5 | 16 |
| XN132-04 | 1.02 | 2 | 42.5 | 26 | 33 | 15.8 | 150.5 | 192 | 17.5 |
| XN132-05 | 1.24 | 3 | 42.5 | 26 | 33 | 15.8 | 163 | 209 | 23 |
| XN132-06 | 2.25 | 5 | 48 | 32.5 | 39 | 18 | 191 | 246 | 31 |
| XN132-07 | 4.66 | 7 | 64 | 43 | 53 | 25 | 243.5 | 313 | 34 |
| XN132-08 | 7.4 | 11 | 70 | 49.5 | 53 | 28.5 | 277 | 364 | 41.5 |
| XN132-09 | 10.6 | 15 | 79 | 54.5 | 62 | 32 | 332 | 431 | 55.7 |
| XN132-10 | 21.4 | 22 | 105 | 81 | 108 | 40 | 427 | 543 | 70 |
| XN132-11 | 32 | 30 | 105 | 100 | 96 | 40 | 465.3 | 596 | 76.2 |
